Description

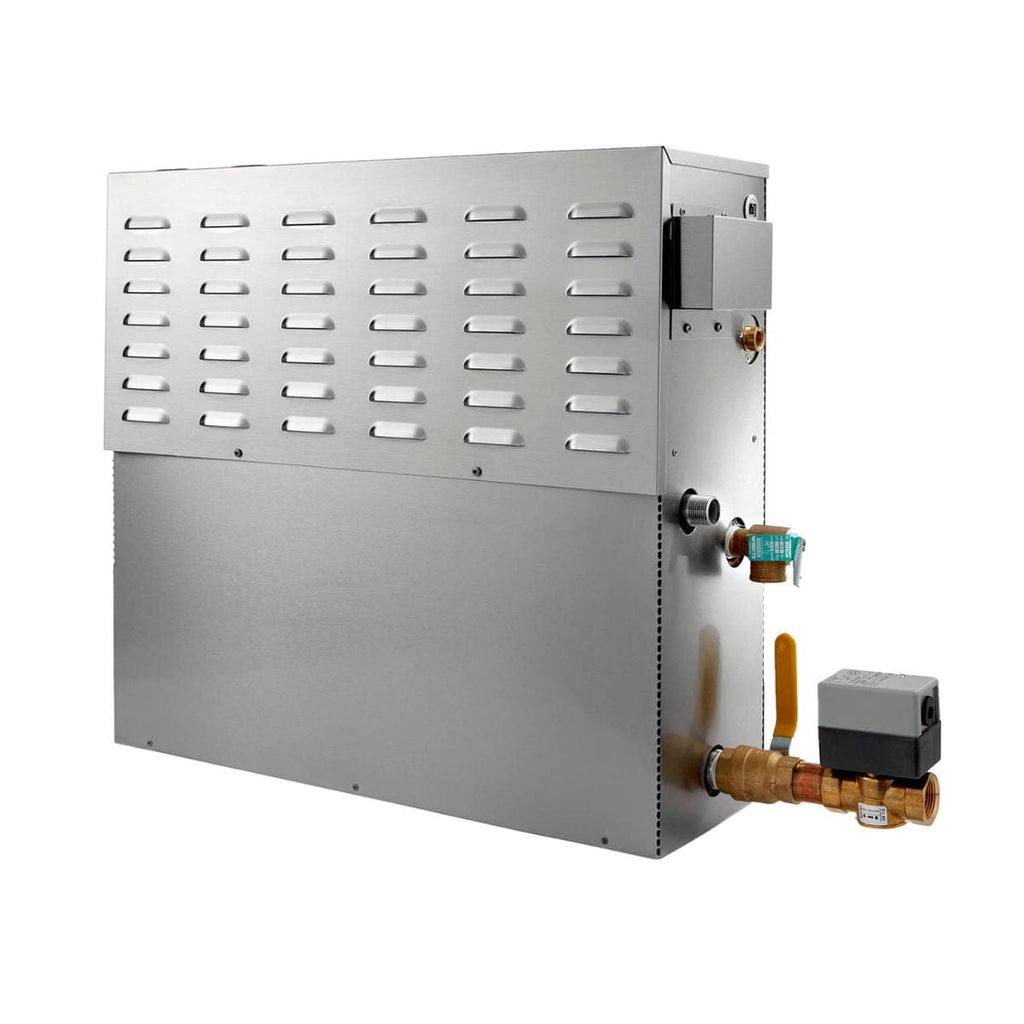

The new CX Generator system is next generation steam power. Now, big things come in an impeccably designed, thoughtfully engineered, compact and concise unit. The CX Generator is innovation in action. Like an old main frame computer that took up an entire room but can now be held in a cell phone, the CX Generator is pure brawn, engineered for peak performance.
MrSteam: Feel Good from Mr.Steam on Vimeo.
Features

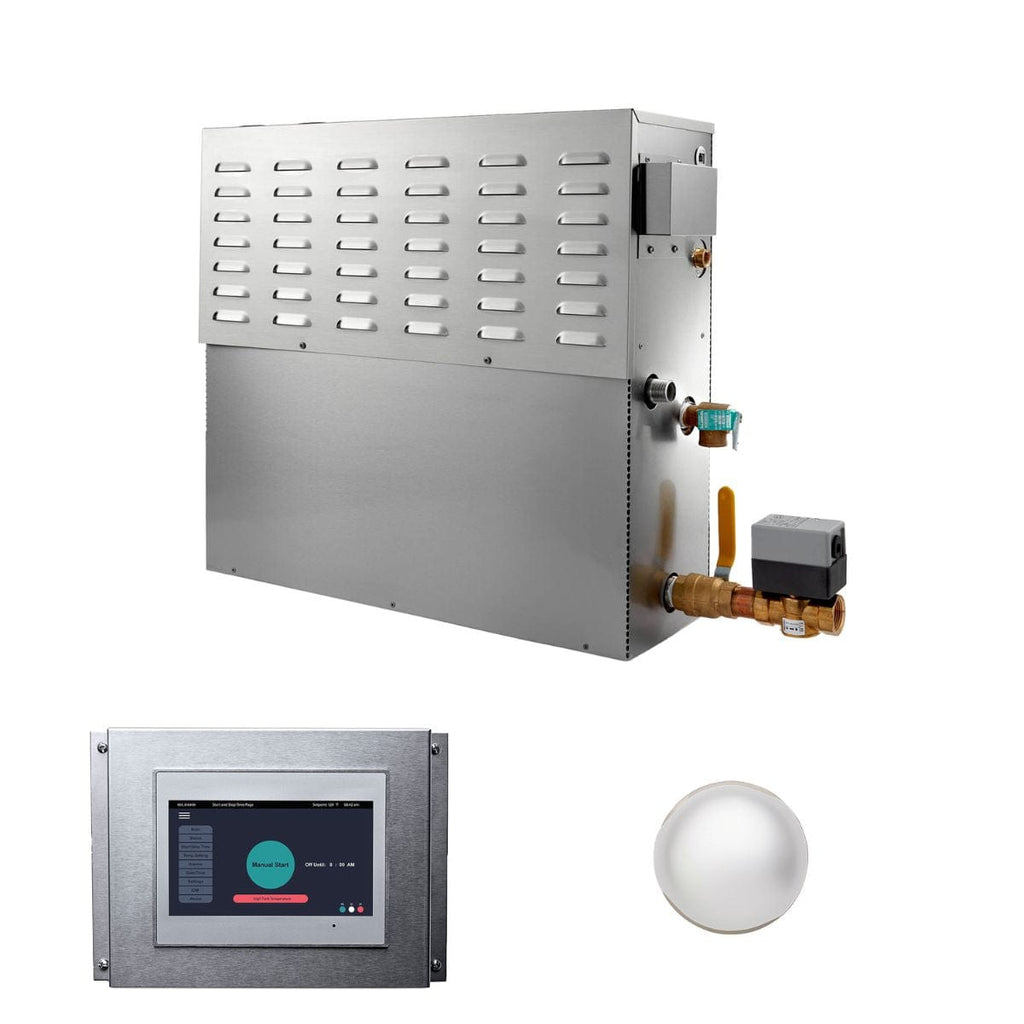

- CX Generator System includes the CX Generator, CX Control, and a commercial grade Steam Head
- The CX Control is a 7" touch screen control for easy settings of start/stop time, room temperature, with a continual view of the operating status
- The CX Generator system comes with a dedicated SteamHead
- The CX Generator comes with a factory installed drain valve
MrSteam: Some Steam Bath Benefits from Mr.Steam on Vimeo.
MrSteam: Benefits Feel Good from Mr.Steam on Vimeo.
Specifications
- Width: 35"
- Depth: 16"
- Height: 23"
- AMPS: 47 A
- cUL
- Material: Stainless Steel
- Control Screen Size: 7"
- COUNTRY OF ORIGIN: Various
- Generator Auto-drain? No
- GGenerator Auto-shut off?: Yes
- GEenerator BTU: 163782.816
- Drain Location: Right
- Drain Opening: 1 NPT
- End Connection Type: NPT
- Fuel Type: Electric
- GPC: 17.33 GAL. PER 60 MIN CYCLE
- GPM: 0.289 GAL.
- Line Fuse: 2x 30 A
- Max Pressure: 0 PSI
- Max Temperature: 45 °C
- Max Time: 60 MIN
- MBH: 163.78
- Phase: 3 PH
- Pipe Fitting & Tubing: 3/8 NPT, 3/4 NPT & 1 NPT
- Steam Prod Time: 15 MIN
- Wire Gauge: 2x 10 AWG
-
Installation Type: Hardwired
- KILOWATTS: 48kW
- VOLT: 600 V
- WATTS: 48000 W
- Warranty Length: Limited Lifetime Warranty (US & Canada)
- Warranty Type: Mr.Steam® warrants that its commercial steambath CU series products and accessories (collectively, CU Products) which are installed in the United States or Canada are free from defects in materials and workmanship for a period of one year from the date of Mr.Steam’s invoice to its purchaser. Mr.Steam will repair or replace (at its option) a CU Product if it fails to conform to these limited warranties. All warranty work will be performed without charge when the CU Product is returned to the location designated by Mr.Steam within the applicable warranty period. To obtain warranty service, call 1-800-76-STEAM (East Coast) or 1-800-72-STEAM (West Coast).
