Mr. Steam High Temperature Alarm & Limit Control For Commercial Generators

Description

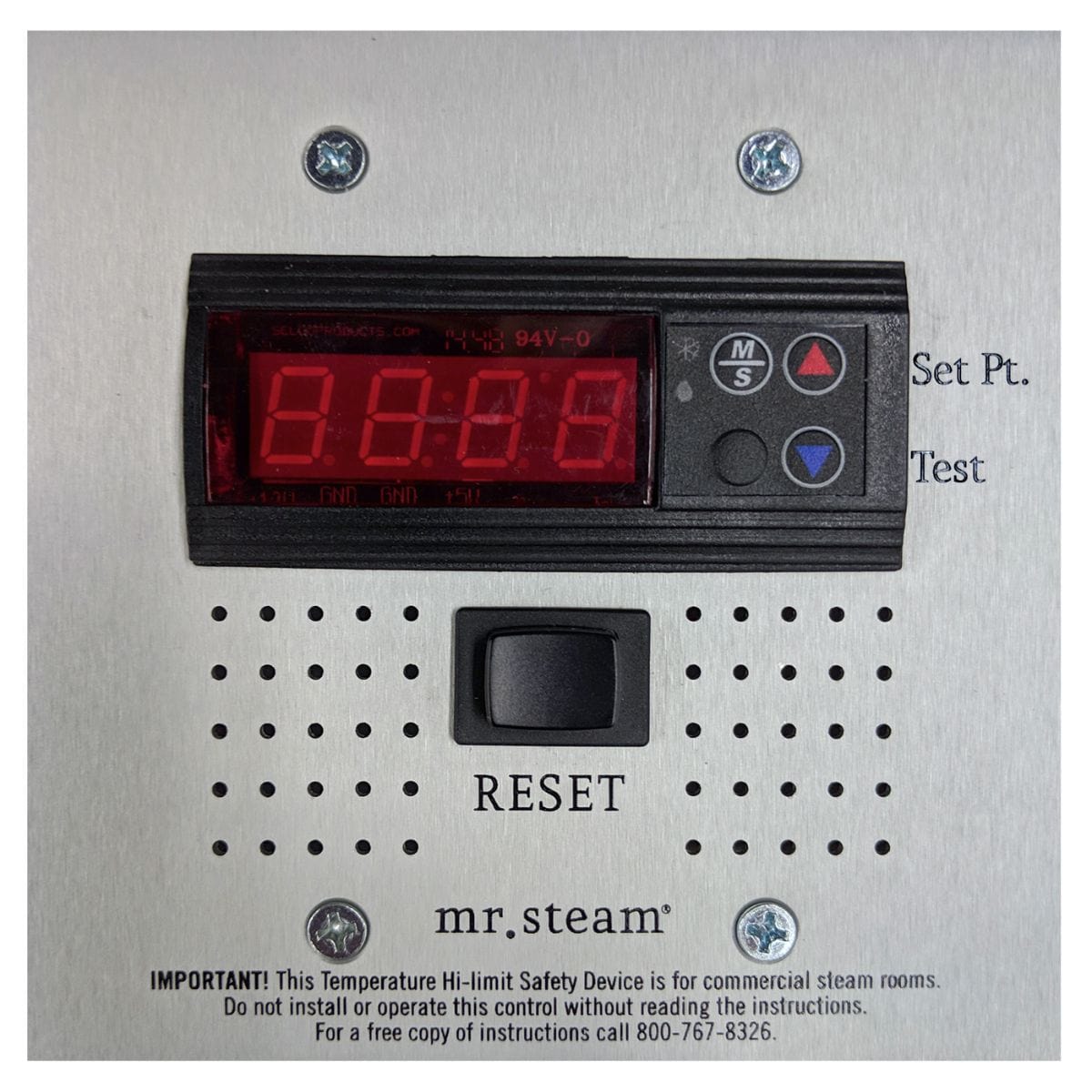

The CU High Limit Device is for use with any CT Day Spa or CU Commercial Steam Generator System to provide over temperature shutoff and alarm function. If the steam room temperature rises above the set point of 120°F, the device will sound an alarm and disconnect the heating source. The Device and the steam generator can only be reset by the attendant after the steam room cools to a point below the Device’s set point Device is required where indicated by code.

MrSteam: Feel Good from Mr.Steam on Vimeo.

Features

• Emergency stop switch to electronically shut down the steam generator
• multiple steam stop switches can be used with one control
• Water-resistant IP-69K rating
• Suitable for use inside or outside the steam room
• For use with CU360-CU1400 generators

MrSteam: Some Steam Bath Benefits from Mr.Steam on Vimeo.

MrSteam: Benefits Feel Good from Mr.Steam on Vimeo.

Specifications

• Width: 5.83"
• Depth: 5.83"
• Height: 5.5"
• UL, CSA
• Compatible Generators: All Commerical Generators
• Material: Plastic / Electronic
• COUNTRY OF ORIGIN: United States
• Warranty Length: Limited Lifetime Warranty (US & Canada)
• Warranty Type: Mr.Steam® warrants that its commercial steambath CU series products and accessories (collectively, CU Products) which are installed in the United States or Canada are free from defects in materials and workmanship for a period of one year from the date of Mr.Steam’s invoice to its purchaser. Mr.Steam will repair or replace (at its option) a CU Product if it fails to conform to these limited warranties. All warranty work will be performed without charge when the CU Product is returned to the location designated by Mr.Steam within the applicable warranty period. To obtain warranty service, call 1-800-76-STEAM (East Coast) or 1-800-72-STEAM (West Coast).

Technical Information & Guides

Planning Guide

Benefits of Steam Bathing Brochure

Steam Benefits Brochure

Installation Manual

Technical Specification Chart

Warranty Sheet
