Description

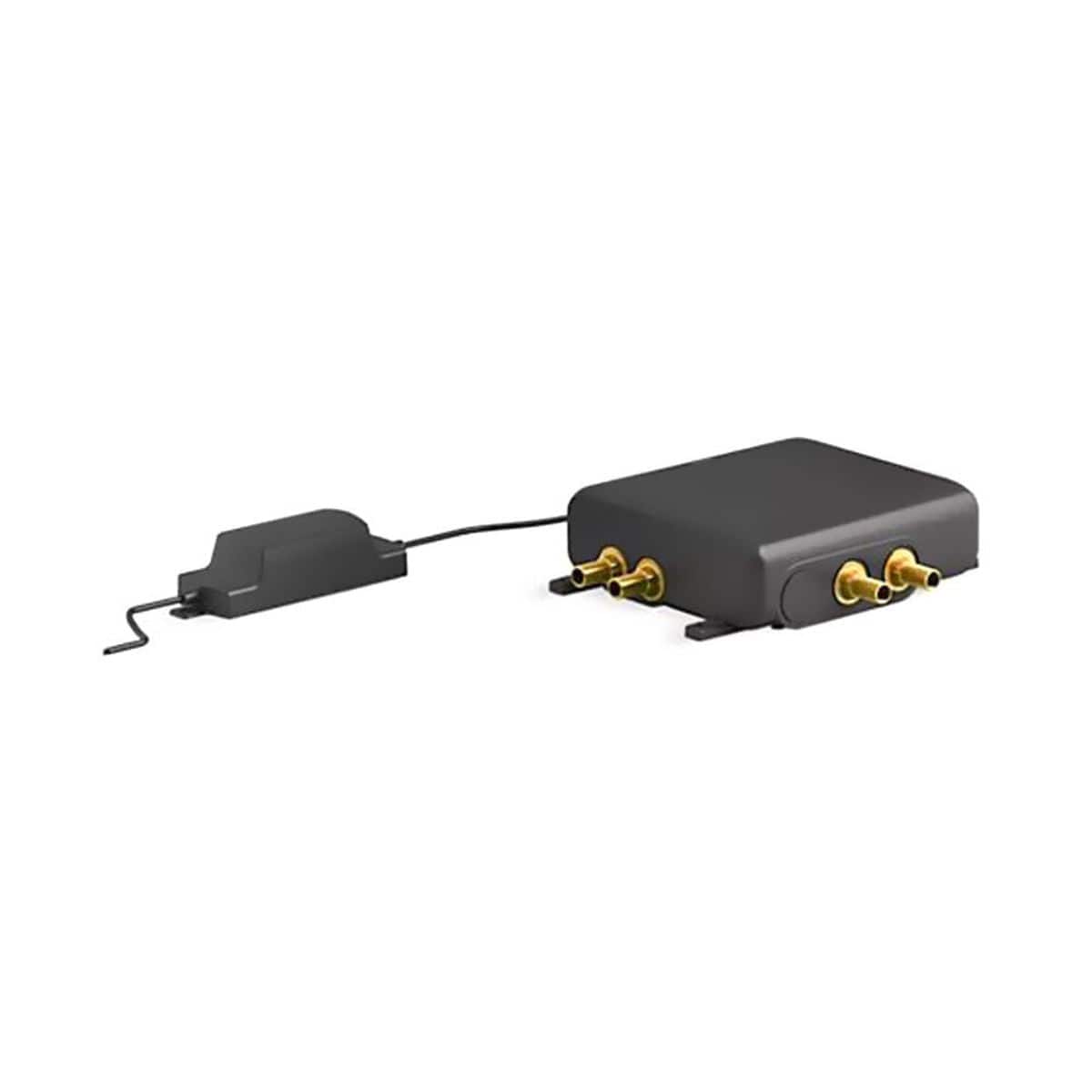

Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
Features
- Digitally controlled thermostatic mixing valve
- Antiscald protection
- Built-in temperature and flow control
- Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time
- Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
- Two independently controllable ½" outlets with brass tube connections
Specifications
- Package Contents: Digital Thermostatic Valve, Filter screens (2), Jumper, Mounting hardware, Power supply unit
- Requires: K-28214
- Product Weight: 5 lbs
- Product Dimensions: 10-5/8"W x 9-1/16"D x 3"H
- Volts: 120VAC
- Amps: 1
- Material: Engineering grade thermoplastic casing
- 5 Year Limited Warranty
- Certifications & Listings: UL, CSA
- Installation type: Wall-mount
- Fuel Type/Power Option: Electrical
