Description

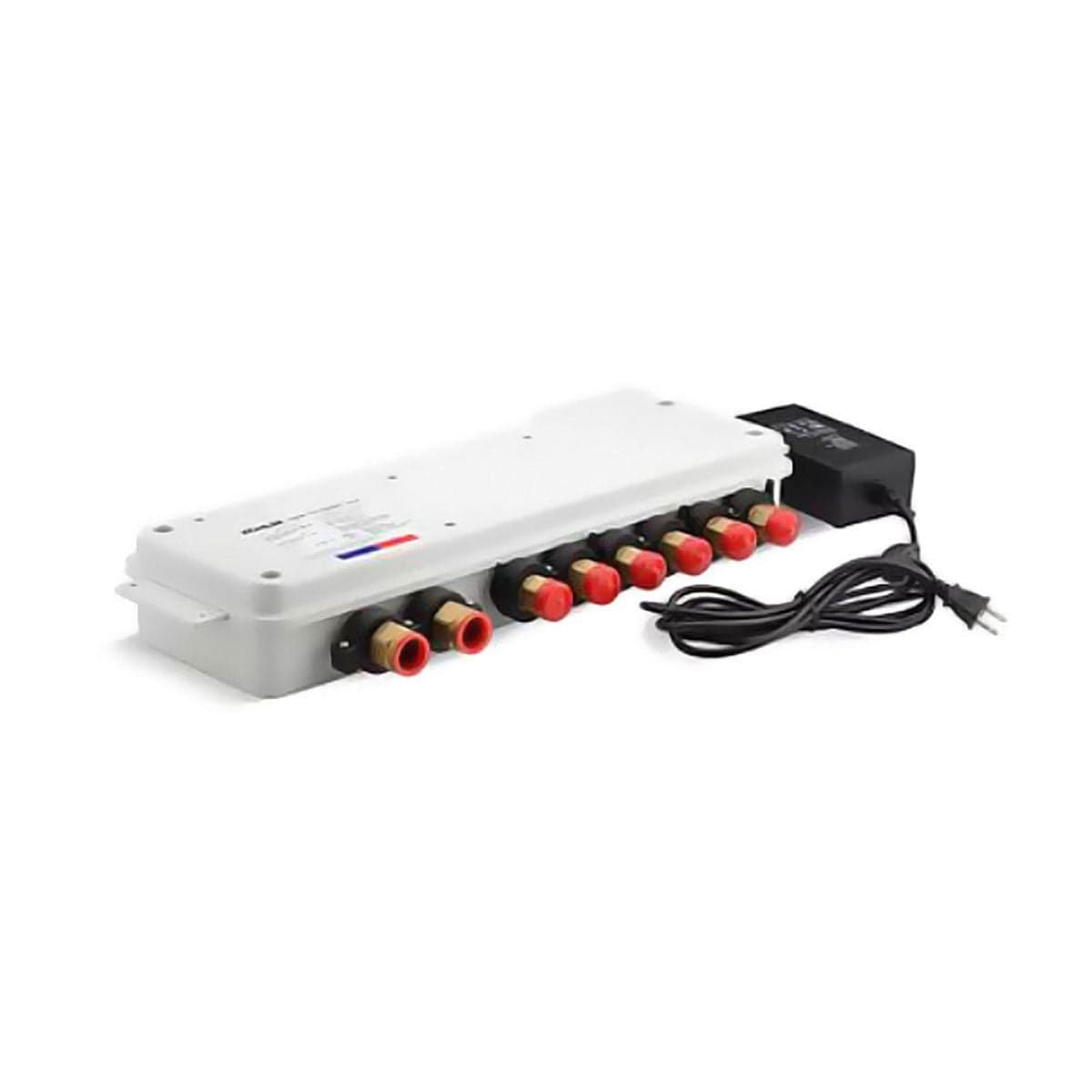

For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control and is used with DTV+. With six independently controllable outlet ports, this valve is ideal for any custom showering application and can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
Features
- Digitally controlled thermostatic mixing valve
- For use with DTV+ system
- Anti-scald protection
- Six independently controllable 1/2" NPT outlets
- 3/4" NPT Inlets
- Max flow rate of 21 PGM
Specifications
- Requires: K-99693-P, K-99694, K-99695
- Product Weight: 5 lbs
- Product Dimensions: 20-1/8"W x 7-3/8"D x 3-5/16"H
- Volts: 120/240VAC
- Amps: 1.5
- Material: Brass
- 5 Year Limited Warranty
- Certifications & Listings: UL, CSA
- Installation type: Wall-mount
- Fuel Type/Power Option: Electrical
