Description

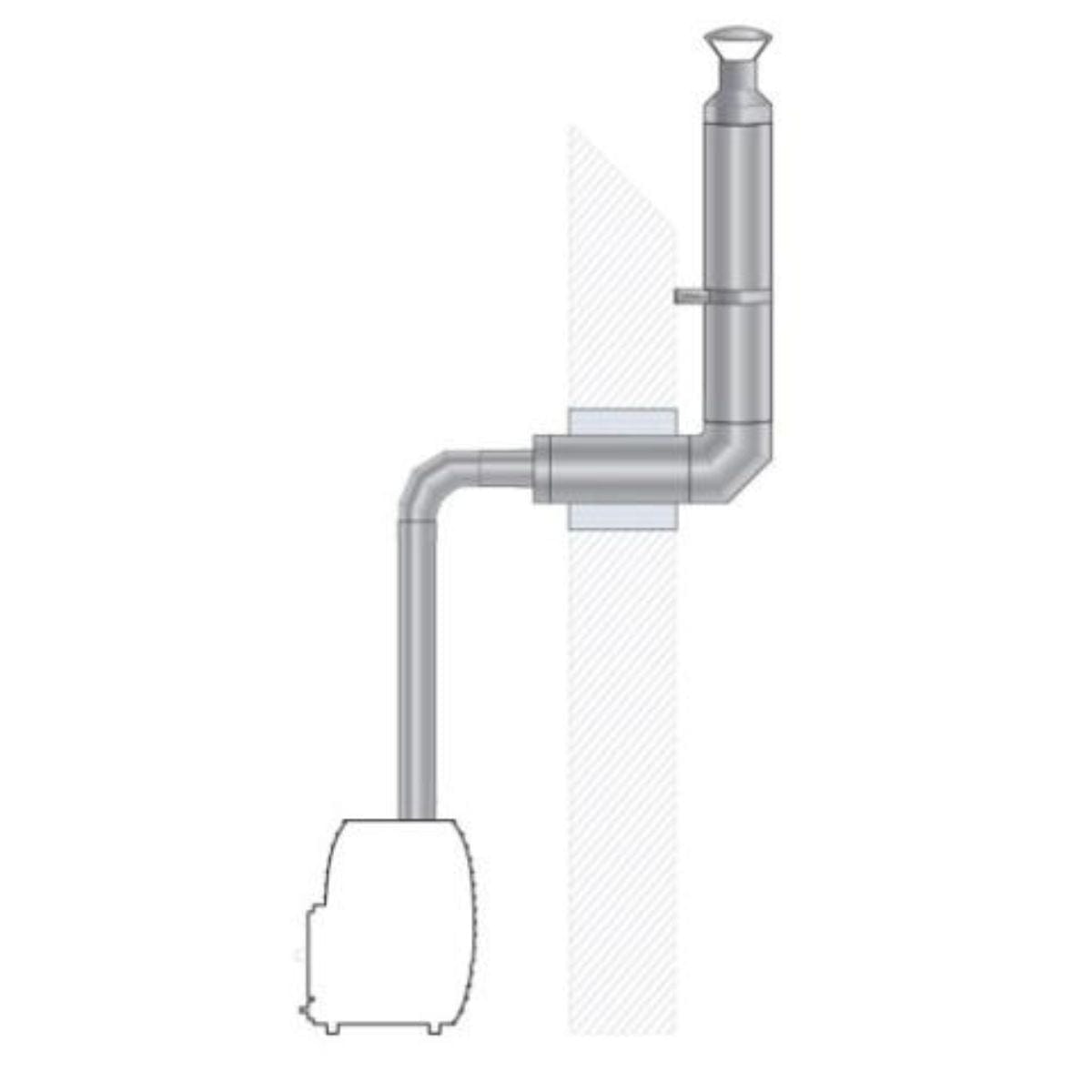

The HUUM Thru-Wall Chimney Set is designed to extend through the wall and is compatible with HUUM Sauna Stoves. This set includes a single-wall 1m pipe, single-wall elbow with cleaning hatch, single-wall pipe 0.25m, chimney base, double-wall 0.5-meter chimney, cover plate in two parts for the wall, 90-degree double-wall elbow, double-wall 1-meter pipe, chimney element bracket, and chimney cap.
Features
- Through the wall
- Mounts in vertical position
- Works with smaller spaces
- Constructed of stainless steel
- Compatible with all Sauna Stoves by HUUM
- Designed, engineered, and made in Estonia
- Limited 5-year warranty
Package Contents
- Single-Wall Pipe (2)
- Chimney Base
- Single-Wall Elbow with Cleaning Hatch
- Double-Wall Chimney
- Wall Cover Plates (2 Parts)
- 90-Degree Double-Wall Elbow
- Double-Wall Pipe
- Chimney Element Bracket
- Chimney Cap
- 5-Year Limited Warranty
Specifications
- Single-Wall Pipe (1) Length: 39.37" (1000mm)
- Single-Wall Pipe (2) Length: 9.8" (250mm)
- Double-Wall Chimney Length: 19.7" (500mm)
- Double-Wall Pipe Length: 39.37" (1000mm)
- Total Length: 102.4" (2600mm)
- Material: Stainless Steel
-
HUUM Thru-Wall Chimney Kit Manual
